Availability: 979 In Stock
Female coffin lock (aka female panel lock). Side mount. 1550 lb load rating. For use with male coffin lock.
Male Coffin Lock - Side Mount
Reference: COFFINM
$5.90
Ships in 5-7 days (See product description for additional notes. We sometimes experience delays with some fabrics/colors.)

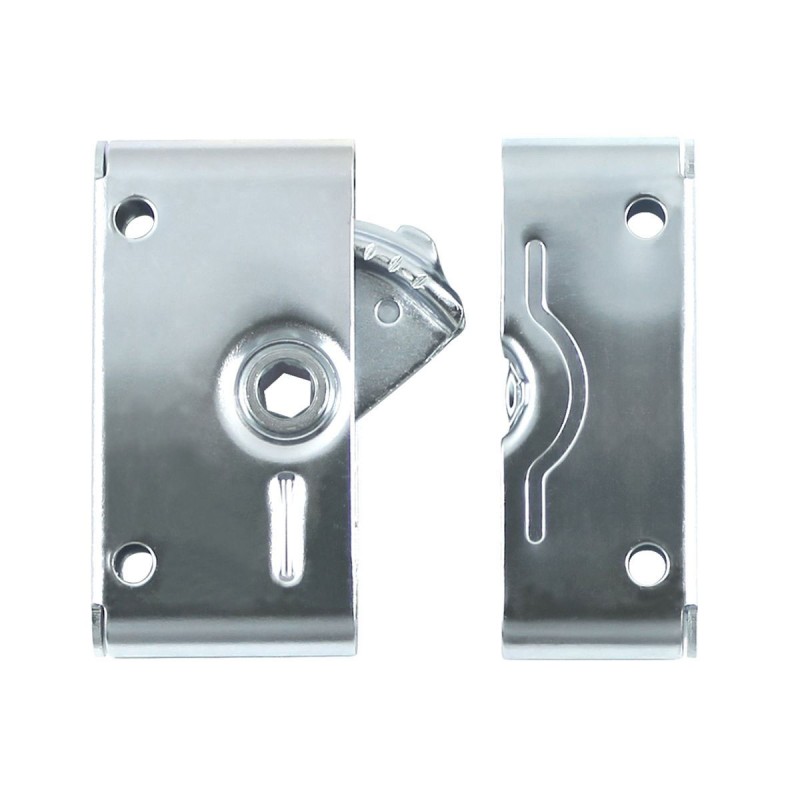

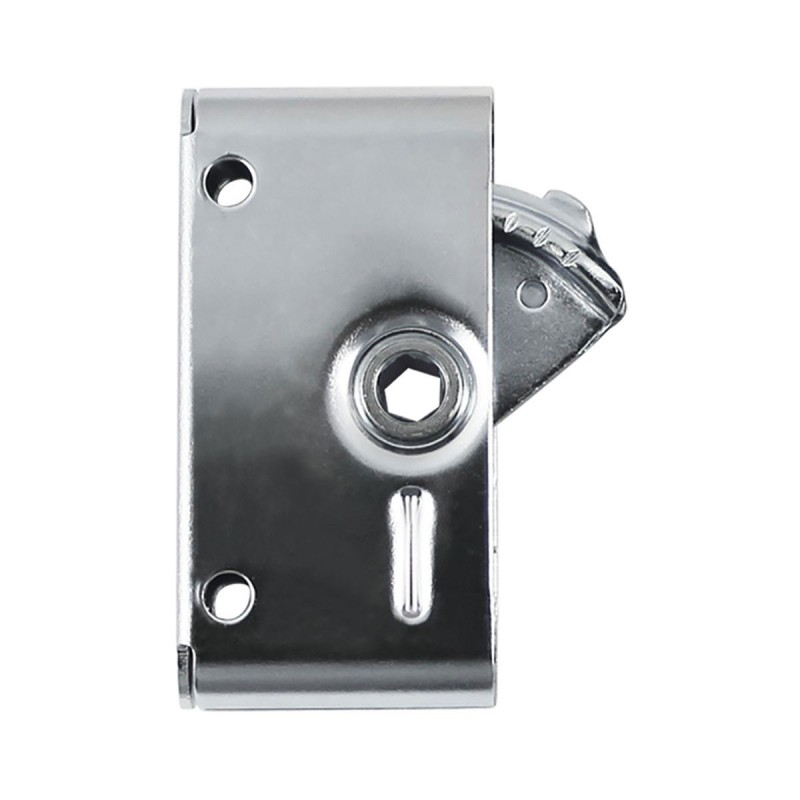

Male coffin lock (aka male panel lock). Side mount. 1550 lb load rating.
Concealed coffin locks (aka panel locks / door locks) are used to lock panels, platforms or decks together.
The rotary lock progressively pulls together and connects panels for quick assembly of structures. This allows the operator to compensate for building variation, manufacturing tolerances or gasket shrinkage.
For use with female coffin lock. Side mount (or mortise mount).

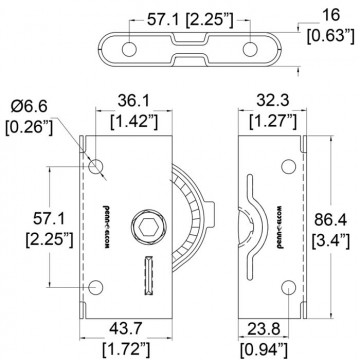

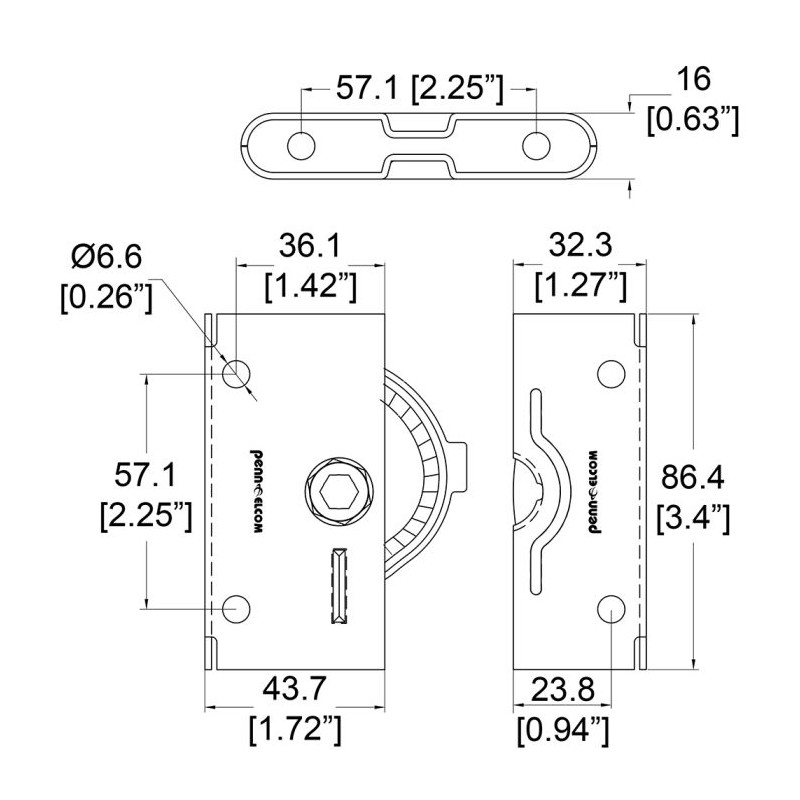

Technical Specifications:
- Load rating: 1550 lbs
- Material: 1/16" Steel
- Type: Male
- Weight: 5.19oz
- Finish: Zinc
COFFINM
979 Items
Male coffin lock (aka male panel lock). Side mount. 1550 lb load rating.
